A new crane

My new crane arrived today, I intend to put two brackets, one each side, on Freyja's tugdeck, two on Christina's gunwales and one in the engine bay. We can lift my motorbike, delivery bike, generator etc. and lift the engine out if need be.

The new crane assembled in my workshop, it will lift up to 1,000lbs and cost less than £150 ;o) I bought it here :- http://www.ebay.co.uk/itm/161482819970?_trksid=p2060778.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT

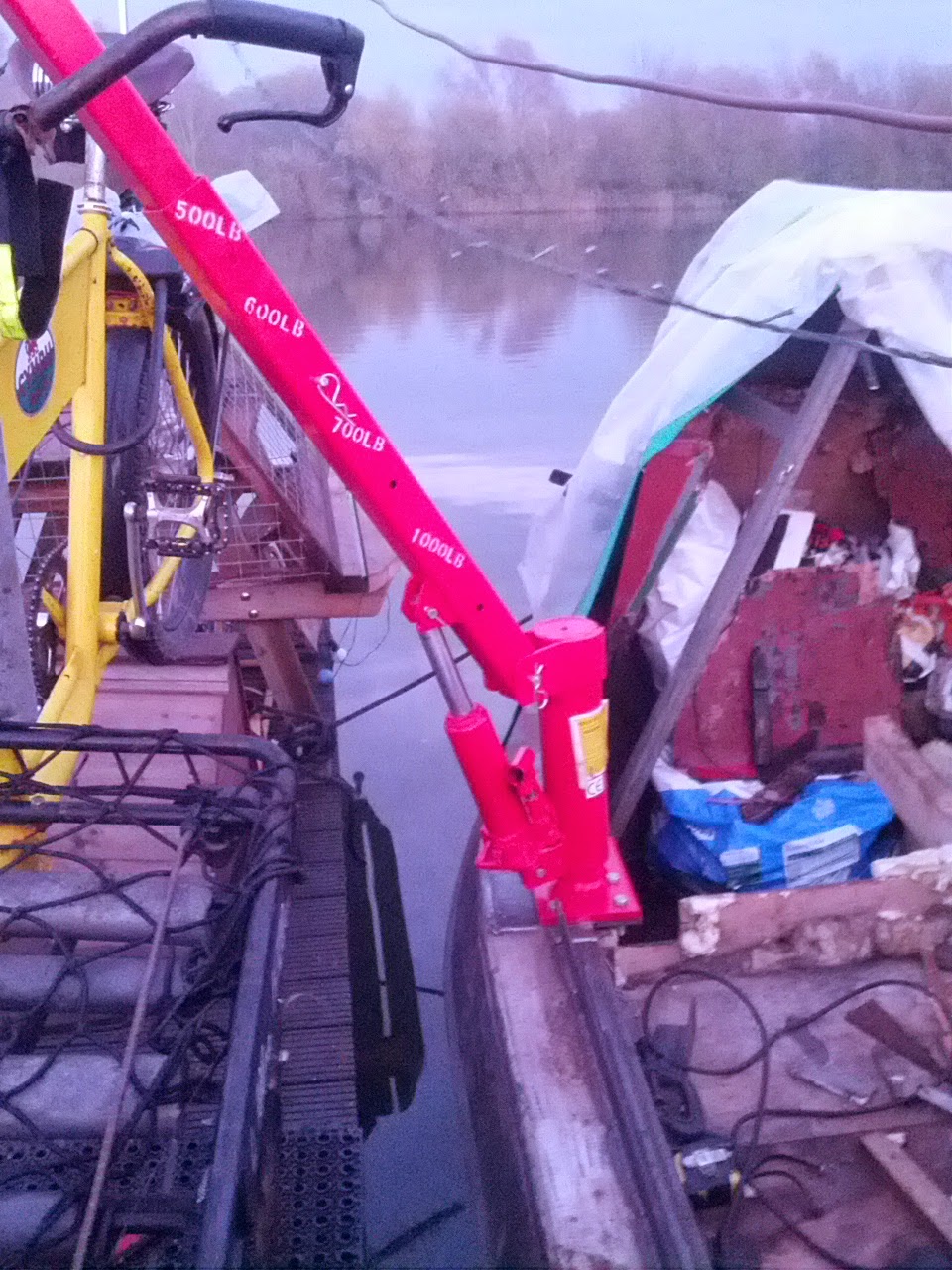

1st mounting plate welded into the gunwhales, bolted the crane on and tested it by lifting my heavy Long-John delivery bike onto what is left of our tugdeck

The crane coped easily with lifting and swinging the Long-John onto the tugdeck, even though it's two feet longer than the large vintage motorbike I want to lift on ;o) we'll put a bracket each side of  Freyja's tugdeck. There will also be brackets each side of Christina's bow, these will be used to lift the chicken coup in and out. Two more will be welded each side of the storeroom, midships in Christina, enabling us to load and unload the generator, my delivery bike and other heavy items. Once out on the cut I will be able to lift out other people's engines etc.

EEEEK! Now I've gone and done it!

We couldn't figure out why a false gunwale had been slapped onto the port side of the tugdeck.
The large and ugly bit of metal that sat on and overhung the forward bow. The big surprise was that it sat on the tugdeck boards, which sat on the original gunwale. It was similar the on the starboard side the deck boards sat on the original gunwale but here they had been covered by wood and flashing tape.
The original gunwales revealed under the tugdeck floorboards, which in turn were under the false metal gunwale on the port side, and under some rotten wood and flashing tape on the starboard side. A strange way of doing things!
Removed the boards, Bruce will weld angle iron with the lip facing inboard then the boards will sit on that. I will replace the rockwool with thermal boards.
The cratch collapsed, I was intending to replace it in hardwood, now I may have to do that a little sooner! HoHum!
Looks like a shipwreck! ;o( It started to disintegrate 2 years ago and has got steadily worse, I will re-instate the folding cratchboard make wider top planks, do away with the grey metal frame which does not fold or detach as the cratch is too high to pass some bridges and lock guillotines without folding.
